Traditional Wooden windows

12 models from the collection or custom profiles, made to order since 1997

Request a Free Quote View Technical Specifications

Intended Use and Specifications

Traditional windows are based on IV78 technology (78 mm profile, Low-E triple glazing, 3 gaskets), with manually applied wooden mouldings and drip rails. They are intended for old houses, historic monuments, and restoration projects. Custom configuration: a moulding profile from the collection or designed for the project, drip-rail width, position on the frame or sash, glazing bars, opaque RAL/NCS finish or Remmers lacquer, hardware for RC requirements on request, a standard wood species, and dimensions based on the plans. Full customisation follows the architectural requirements and the historic context. Model names are confirmed with the manufacturer.

Uw 0.81 W/m²K

Standard

32-46 dB

Acoustic insulation

5-year warranty

Schlegel Q-Lon

What are traditional wooden windows

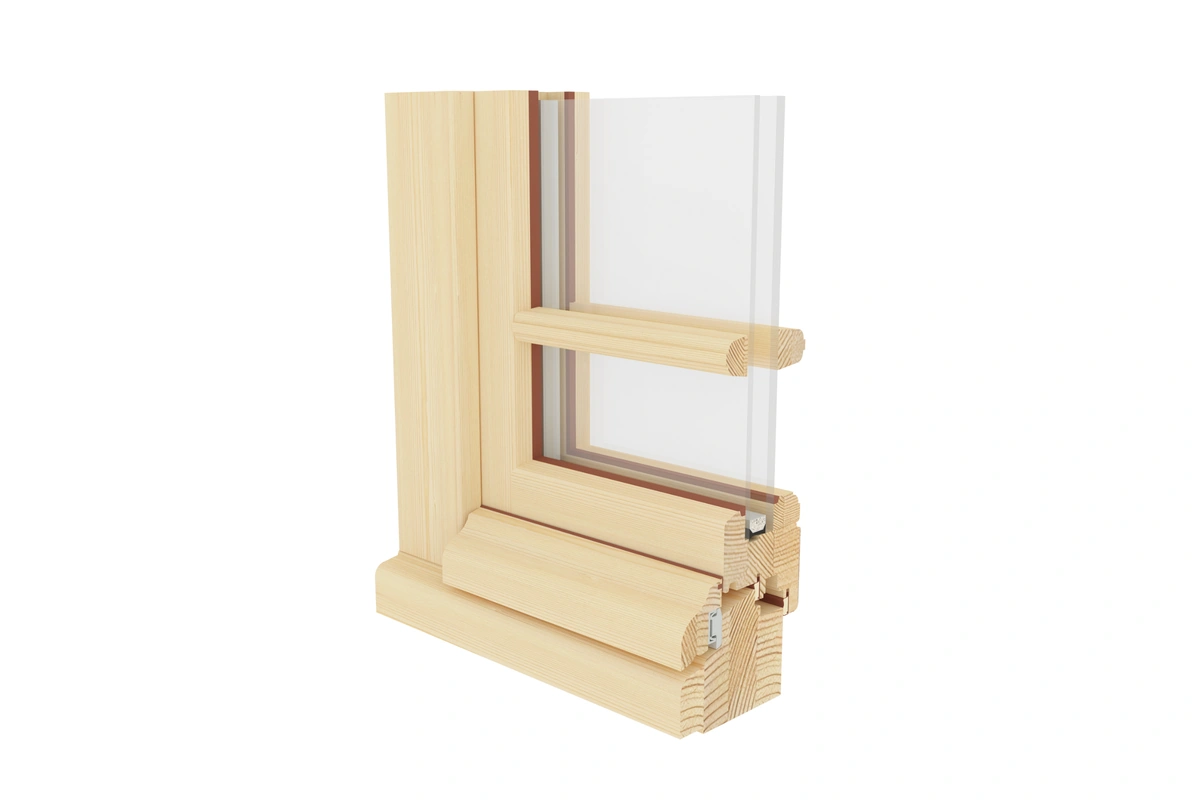

The structural base is the IV78 profile — 78 mm laminated wood, triple glazing, Schlegel Q-Lon gaskets, Roto NX hardware. Thermal performance is the same as for the standard series.

The difference compared with the plain IV78: laminated wood mouldings and drip profiles are applied to the frame and sash, manufactured in the factory and finished in the same cycle as the rest of the window. They are not accessories fitted afterwards — they are part of the product.

Uw depends on the configuration. For the standard IV78 geometry (1230×1480 mm, one sash), the base value is 0.81 W/m²K. For windows with structural glazing bars (several separate glazing), the frame/glazed-area ratio increases, and Uw increases as well — the exact value is calculated for the project configuration.

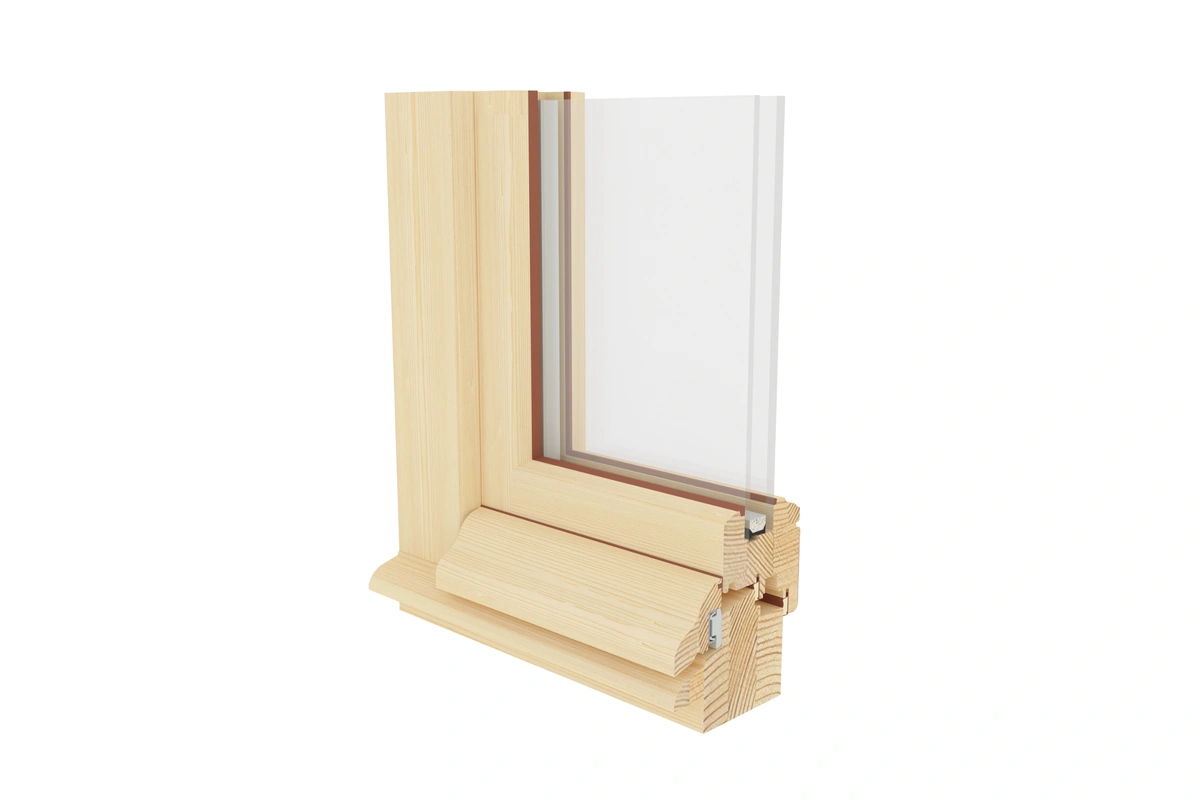

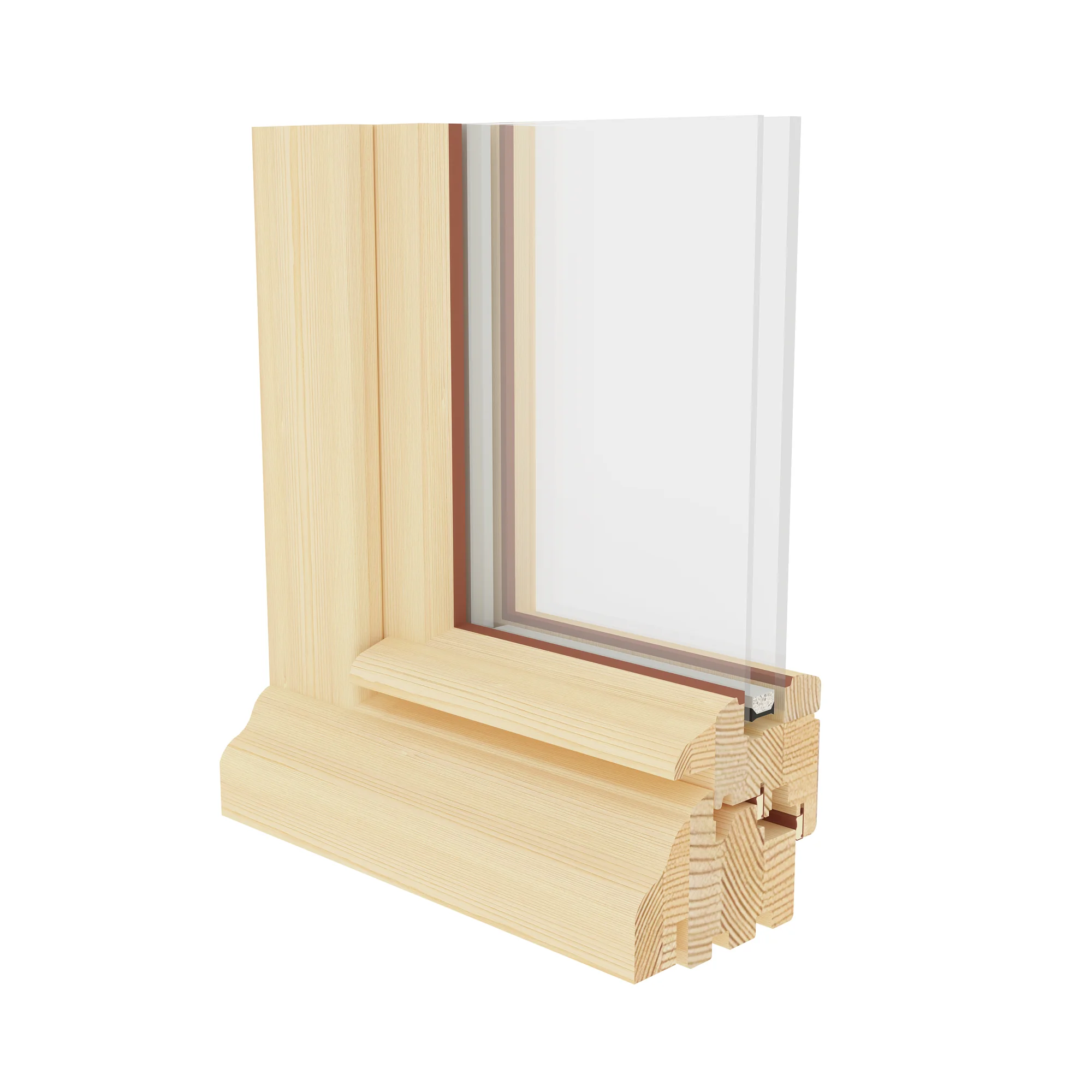

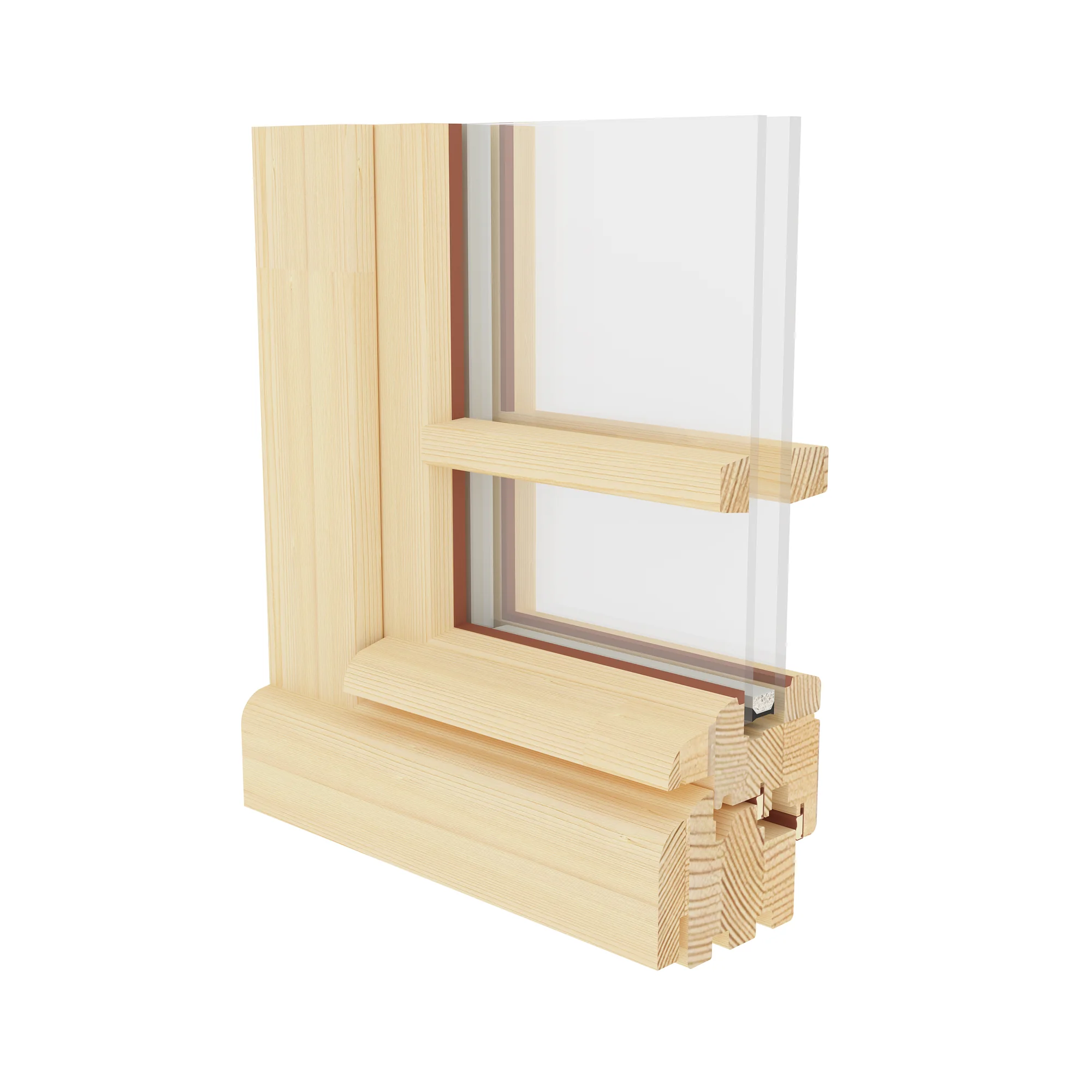

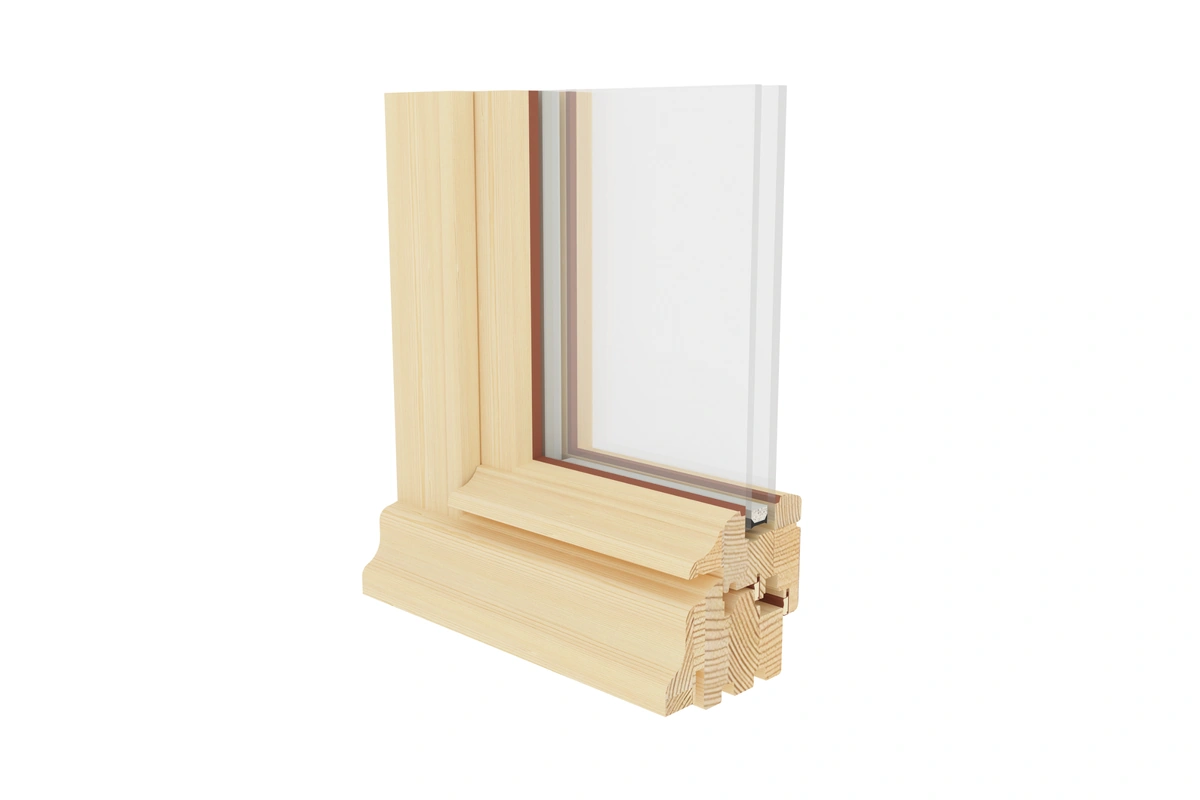

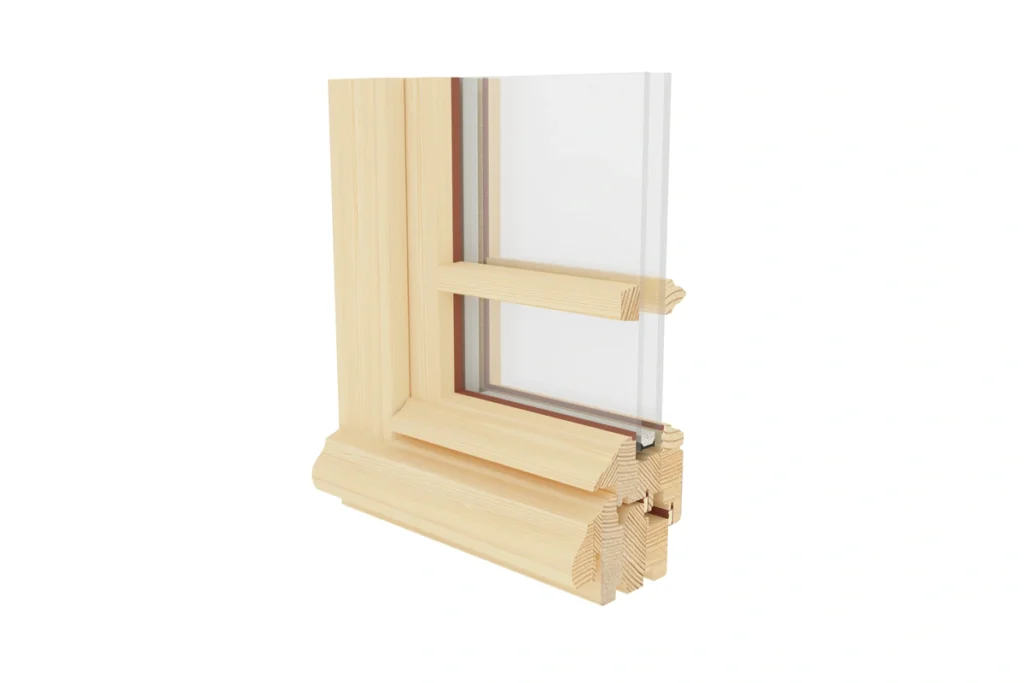

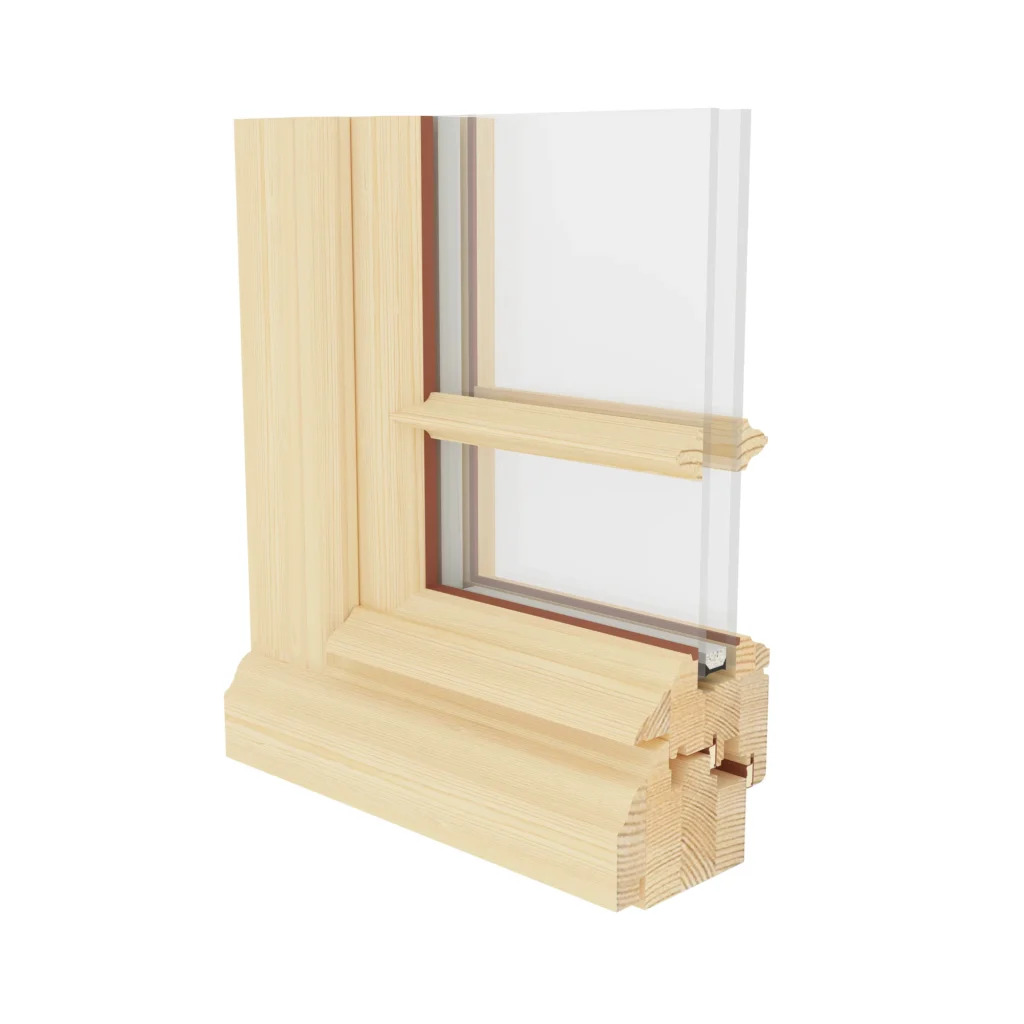

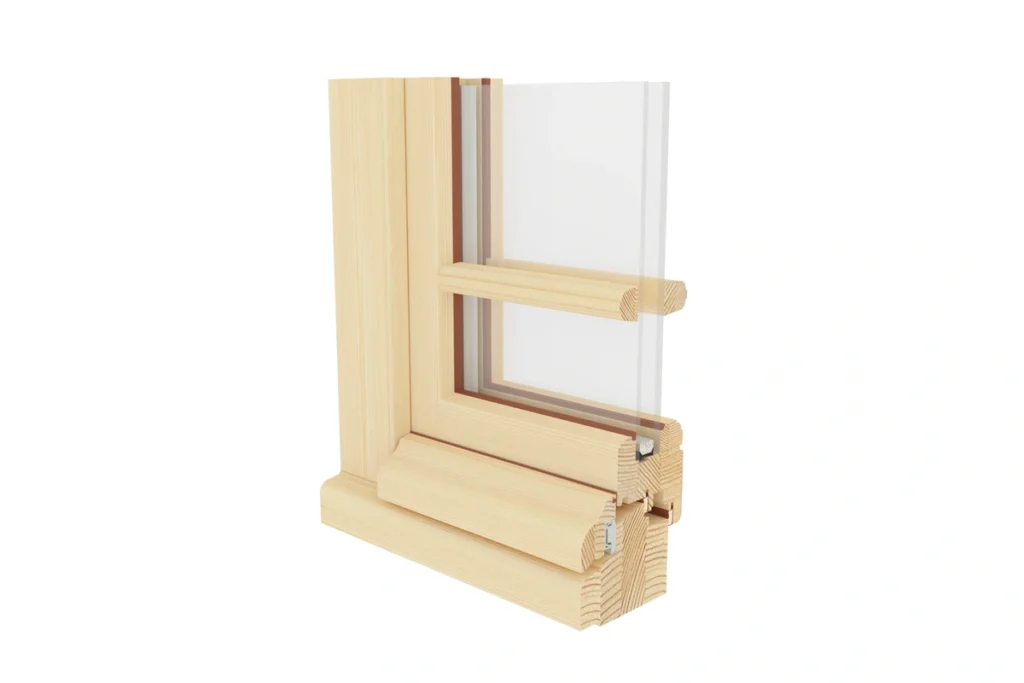

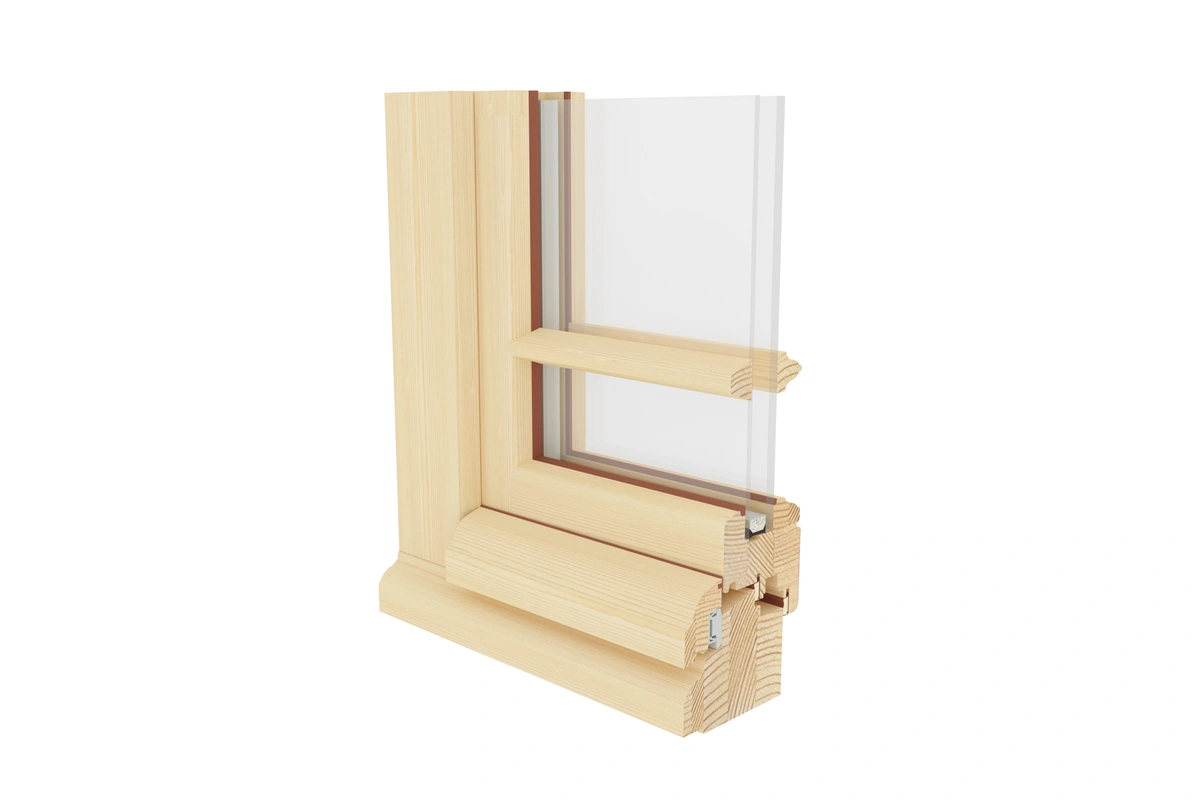

Collection of 12 models

Each model in the collection differs through the shape and layout of the mouldings and drip profiles. The collection covers classic wooden-window styles — from fine mouldings on the frame to wide drip profiles with a traditional profile. The structural base is identical for all: IV78, triple glazing, same production cycle.

For a decorative profile that is not included in the collection: we manufacture custom mouldings based on project documentation or an existing sample. Send us the plans or photographs.

REQUEST PERSONALIZED CONSULTATION

Technical specifications

Alternative base profile: IV68 or IV92 available on request, less commonly requested. IV68 for renovations with a fixed structural opening; IV92 for projects with Passivhaus energy specifications.

Parameter	Value
Base profile	IV78 - 78 mm laminated wood
Laminated wood	3-4 layers, D4 adhesive, Class I wood
Mouldings and drip rails	Laminated wood, finished in the same cycle as the window
Base Uw (1230×1480 mm)	0.81 W/m²K
Glazing bars in glass	Do not affect Uw - aluminium profiles between layers
Glazing	40 mm triple glazing standard; 44 mm on request; double glazing available
Glazing Ug	0.6 W/m²K standard (VIG 0.2 on request)
Acoustic insulation	32-46 dB standard
Gaskets	3 x Schlegel Q-Lon
Standard hardware	Roto NX - micro-ventilation and burglar resistance
Decorative cremone bolts	With rod and ornaments applied to the sash — available on request
Ancienne-style handles	Dauby, Linea Cali, Galbusera and other manufacturers (brass, patina, hammered black, bronze)
Optional hardware	Roto NX Concealed, RC1, RC2, RC3
Finish	Opaque RAL / NCS or Remmers translucent lacquer
Warranty	5 years
Lead time	10–16 weeks (longer than the standard series)

Available ornament types

Mouldings applied to the frame and sash - classic profile or custom based on documentation.

Drip profiles

drainage profiles applied to the frame or sash on the exterior, specific to traditional architecture.

Decorative glazing bars

applied to the glass surface, purely aesthetic. Do not affect Uw.

4 PGlazing bars in glass, with

profiles mounted between the glazing layers, part of the glass unit. Can be milled (decorative profile on section) or matte black. May modify the unit's Uw.

Curved shapes

arches and non-standard geometries made to order.

Decorative hardware

For traditional windows, the hardware is part of the final appearance - it is not just functional.

Decorative cremone bolts

a locking system with a vertical rod and ornaments applied to the sash, specific to double-sash windows. They are visible on the inside of the window and contribute to the stylistic coherence of the ensemble.

Blue traditional IV78 wooden window — Traditional IV78 wooden window in blue

Chateau de Longchamp wood joinery — Double interior door with two fixed frames and glazing bars

Special handles in "ancienne" style

natural brass, brass with patina, bronze, hammered black, and other finishes not found in the standard range. Available from manufacturers specializing in ironmongery for heritage joinery:

Dauby - brass and bronze with manual patination
Linea Cali — matt and antiqued finishes
Galbusera - wide range of colours and surface treatments
Other manufacturers on request, depending on project specifications

Decorative hinges

adjustable 3D hinges with decorative covers in plastic, aluminium, or brass. The hinge head can be standard flat or pointed (antique style). Available finishes: Bronze Plated, Natural Brass, Polished Varnished, RAL painted. Fully hidden hinges - available on request for a clean look with no visible elements on the sash.

Green IV78 wooden window — IV78 wooden window in green

Standard functional hardware

Roto NX with micro-ventilation and burglar resistance included. RC1, RC2, RC3 systems available on request, compatible with decorative hardware.

Available wood species

Spruce for opaque RAL or NCS finishes - fine grain, compatible with any colour. Pine - similar properties, slightly more pronounced grain.

Spruce

Oak

Meranti

Larch

Pine

When Traditional Windows is recommended
and when it is not the right choice

When they are the right choice

Wooden windows for old houses or interwar villas - where a simple modern window would break the facade's architectural language.
Historic monuments or buildings with facade restrictions imposed by the Heritage Department - we manufacture any decorative profile according to restoration documentation.
New houses built in traditional or neo-classic style where aesthetic coherence of the facade is specified in the project.
Renovations where the owner makes no compromises on either thermal performance or appearance.

When they are not the right choice

If the priority is a short lead time - 10-16 weeks compared to 6-10 for standard IV78.
If the budget is tight compared to standard IV78 - the cost varies depending on the complexity of the decorative profile and the number of windows, but is higher per unit than the standard series.
If a traditional look is not a requirement of the project - standard IV78 delivers the same thermal performance at a lower cost and shorter lead time.

Reference Projects

We have manufactured traditional windows for heritage houses, interwar villas, renovations in historic centers, and new houses with traditional architecture. Each project started from a specific decorative profile - from the collection or customized according to documentation.

REQUEST PERSONALIZED CONSULTATION

Custom configuration Available

Moulding profile chosen from the collection of 12 models or drawn for the project
Drip profile width, from fine mouldings on the frame to wide traditional drip profiles
Mouldings applied to the frame, to the sash, or to both
Glazing bars in the glass, which do not affect the Uw of the window
Opaque RAL or NCS finish, or Remmers translucent lacquer
Hardware configured for RC1, RC2 or RC3 requirements on request
Wood species chosen from our standard range
Sizes and opening configuration made to the drawings of the project

Request a Quote for Your window

SM Wood Customer Experience

We only listen to the opinions of people who sleep soundly in their homes during the deepest winter.
Authentic serenity is our greatest testimonial.

Very good. Everything was according to the timelines and expectations!

Florin Lonca
Cluj-Napoca

Excellent! I am very satisfied with the collaboration in every respect: price, responsiveness, execution speed, and quality. I recommend them with confidence.

Marius Moldovan
Residential house project, Cluj

It was great working with smwoodprocom – the finished product was great, and what we expected. They are willing to go the extra mile to meet the client's needs and are flexible!

Jerome B.
Prébailly, France

Frequently Asked Questions

The technical base is identical — IV78, triple glazing, Uw 0.81 W/m²K at standard geometry, the same gaskets and hardware. The difference consists of the laminated wood mouldings and drip profiles applied to the frame and sash, finished in the same cycle. The production lead time is longer: 10–16 weeks compared with 6–10.

Yes. We manufacture any decorative profile according to restoration documentation or the requirements of the Directorate for Culture. Send us the plans or façade photographs and we will discuss the suitable configuration.

The additional cost depends on the complexity of the chosen profile — the number of mouldings, the width of the drip profiles, structural or decorative glazing bars, and the number of windows in the order. There is no fixed multiplier. Personalized quotes are available on request.

Yes. Each separate glass pane adds extra frame - which has a higher Uf than the glass Ug. The more panes, the higher the frame-to-glass ratio, and the final Uw increases. We calculate the exact value for the project configuration.

Not in combination with the traditional collection - the exterior aluminium profile would alter the decorative appearance. For improved protection of the exterior wood, we recommend Remmers multi-layer finishes with UV extenders.

Yes, we manufacture and install nationwide. Custom wooden windows made in Floresti, Cluj - physical samples from the collection are available at the workshop.
